NGCL Series

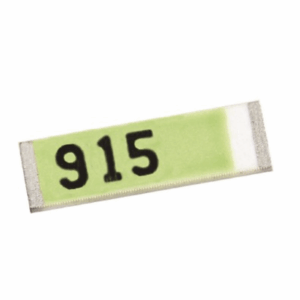

Loop Style Ceramic Chip Antennas
FocusAutomotiveDesign Reg
Improve your portable or IoT design with NICs looped chip antennas. Our antennas support several protocols, including WiFi/Bluetooth, ISM, Lora, GNSS, and DECT. The looped chip antenna offers several advantages over standard monopole antennas, including lower current density, noise resistance, and good anti-interference capabilities. Its position at the center of the PCB edge ensures minimal human body interference. Choose NICs looped chip antennas for a cost-effective and easy-to-install embedded antenna solution.
NGCL Features
- Multiple protocols and combinations within a single antenna
- Improved magnetic field dominating loop antenna design
- Reduced sizes down to 0603
- Reduced ground plane
- AEC-Q200 Qualified
Resources
Alternatives, Upgrades & Co-Sells
Application Info
- IoT (Internet of Things)
- Wearables
- Gateways
- Smart Homes
- Meters
- Tracking
- Navigation
- Automotive Sensors
Environment Info
- EU RoHS: Yes
- China RoHS: Yes
- Halogen Free: Yes
- MSL: 1
NGCL Value Range
| Part Number | Protocol(s) | Frequency Ranges | Dimensions (mm) |
|---|---|---|---|
| NGCL1206UG1R575G1TRF | GNSS: GPS & GLONASS L1 | 1560 ~ 1606 MHz | 3.2x1.6 |
| NGCL1206UG1R575G1TRQYF | GNSS: GPS &GLONASS L1 | 1560 ~ 1606 MHz | 3.2x1.6 |
| NGCL5030UG1R575G4TRF | GNSS: GPS & GLONASS L1, L2, L5 | 1176.45 MHz, 1227.6 MHz,1278.75 MHz, 1575.42 MHz | 5.0x3.0 |
| NGCL5030UG1R575G4TRQYF | GNSS: GPS & GLONASS L1, L2, L5 | 1176.45 MHz, 1227.6 MHz,1278.75 MHz, 1575.42 MHz | 5.0x3.0 |
| NGCL1206UV1R575G2TRF | GNSS: GPS L1, WIFI | 1575 MHz, 2400~2500 MHz, | 3.2x1.6 |
| NGCL1206UV1R575G2TRQYF | GNSS: GPS L1, WIFI | 1575 MHz, 2400~2500 MHz | 3.2x1.6 |
| NGCL1206UV1R575G3TRF | GNSS: GPS L1, WIFI | 1575 MHz, 2400~2500 MHz, 5150~ 5850 MHz | 3.2x1.6 |
| NGCL1206UV1R575G3TRQYF | GNSS: GPS L1, WIFI | 1575 MHz, 2400~2500 MHz, 5150~ 5850 MHz | 3.2x1.6 |
| NGCL1032US0R868G1TRF | ISM / LoRa / DECT | 863 ~ 870 MHz | 10x3.2 |
| NGCL1032US0R868G1TRQYF | ISM / LoRa / DECT | 863 ~ 870 MHz | 10x3.2 |
| NGCL1032US0R915G1TRF | ISM / LoRa / DECT | 902 ~ 928 MHz | 10.0x3.2 |
| NGCL1032US0R915G1TRQYF | ISM / LoRa / DECT | 902 ~ 928 MHz | 10.0x3.2 |
| NGCL1206UD1R905G1TRF | ISM / LoRa / DECT | 1880 ~ 1930MHz | 3.2x1.6 |
| NGCL1206UD1R905G1TRQYF | ISM / LoRa / DECT | 1880 ~ 1930MHz | 3.2x1.6 |
| NGCL5030US0R433G1TRF | ISM / LoRa / DECT | 433.05 ~ 434.79MHz | 5.0x3.0 |
| NGCL5030US0R433G1TRQYF | ISM / LoRa / DECT | 433.05 ~ 434.79MHz | 5.0x3.0 |
| NGCL5030US0R868G1TRF | ISM / LoRa / DECT | 863 ~ 870 MHz | 5.0x3.0 |
| NGCL5030US0R868G1TRQYF | ISM / LoRa / DECT | 863 ~ 870 MHz | 5.0x3.0 |
| NGCL5030US0R915G1TRF | ISM / LoRa / DECT | 902 ~ 928 MHz | 5.0x3.0 |
| NGCL5030US0R915G1TRQYF | ISM / LoRa / DECT | 902 ~ 928 MHz | 5.0x3.0 |
| NGCL1206UW2R440G3TRF | WIFI | 2400 ~ 2500 MHz, 5150~5850MHz, 5925 ~ 7125 MHz | 3.2 x1.6 |
| NGCL1206UW2R440G3TRQYF | WIFI | 2400 ~ 2500 MHz, 5150~5850MHz, 5925 ~ 7125 MHz | 3.2 x1.6 |
| NGCL1206UW2R442G2TRF | WIFI | 2400~2500MHz, 5150~5850MHz | 3.2 x1.6 |
| NGCL1206UW2R442G2TRQYF | WIFI | 2400~2500MHz, 5150~5850MHz | 3.2 x1.6 |
| NGCL0603UB2R442G1TRF | WIFI / Bluetooth | 2400~2500MHz | 1.6x0.8 |
| NGCL0603UB2R442G1TRQYF | WIFI / Bluetooth | 2400~2500MHz | 1.6x0.8 |
| NGCL1206UW2R442G1TRF | WIFI / Bluetooth | 2400~2500MHz | 3.2x1.6 |
| NGCL1206UW2R442G1TRQYF | WIFI / Bluetooth | 2400~2500MHz | 3.2x1.6 |
| NGCL2012UW2R450G1TRF | WIFI / Bluetooth | 2400 ~ 2484 MHz | 2.0x1.2 |
| NGCL2012UW2R450G1TRQYF | WIFI / Bluetooth | 2400 ~ 2484 MHz | 2.0x1.2 |
